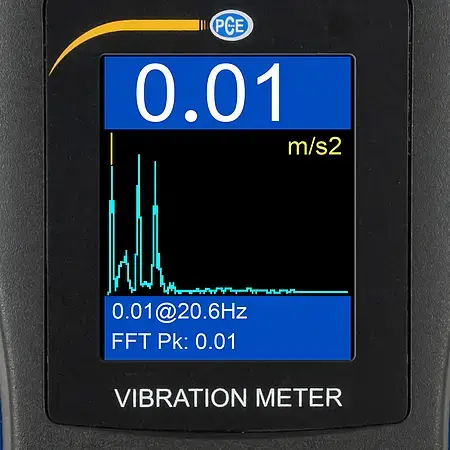

The accelerometer has a measuring range of 0 ... 200 m/s² for acceleration. In addition to acceleration, the vibration meter can also measure speed, displacement, frequency and an ISO 18016-3 measurement. During the vibration measurement, an FFT view is simultaneously displayed on the vibration meter. By pressing a button, it is possible to switch from the FFT analysis to the actual wave view of the vibration. This makes it possible to analyse and evaluate a vibration even better with the vibration meter. The magnetic holder of the vibration sensor of the vibration meter is designed in such a way that it can be attached to curvatures with a minimum radius of 20 mm / 0.78".
In addition to the vibration measurement, the accelerometer also has an external infrared temperature sensor. With this temperature sensor, surface temperatures between -70 ... 380 °C / 158 ... 716 °F can be measured. Another measuring function of the vibration meter is the contactless speed measurement. This means that the number of revolutions of ventilation systems, for example, can be checked with the vibration meter.
The accelerometer has a 4 GB memory. The measurement data can then be transferred from the vibration meter to a PC. Free software is available to analyse the data.
Because of its many functions, the accelerometer is a universally applicable measuring tool. Thus, the vibration meter can be used, for example, for maintenance work on generators or engines. Optionally, the vibration meter can be equipped with an ISO certificate.
Accelerometer PCE-VM 22
- Measuring range 0 ... 200 m/s²
- Infrared temperature measurement
- 4 GB data storage
- 8 hours of battery life
- Optionally with ISO calibration certificate
- FFT analysis and wave view of the vibration
Frequency Measuring range 1 ... 10,000 Hz Resolution 0.1 Hz Accuracy ±5 % Acceleration Measuring range 0 ... 200 m/s² Resolution 0.01 m/s² Accuracy ±5 % Speed Measuring range 0 ... 200 mm/s Resolution 0.01 mm/s Accuracy ±5 % Displacement Measuring range 0 ... 2000 µm Resolution 0.01 µm Accuracy ±5 % Infrared temperature measurement Measuring range -70 ... 380 °C / -94 ... 716 °F Resolution 0.1 °C / °F Accuracy ±0.5% at (0…+60°C), (32 ... 140 °F) ±1% at (-40 ... 0, 60 ... 120 °C), (-40 ... 32, 140 ... 248 °F) ±2% at (-70 … -40, 120 ... 180 °C), (-94 ... -40, 248 ... 356 °F) ±4% at (180 ... +380 °C), (356 ... 716 °F) Emissivity 1 fixed Tachometer Measuring range 10 … 200,000 RPM Resolution 0.1 RPM Accuracy ±0.1% and ±1 RPM Units RPM, Hz Further specifications for the handheld device FFT spectrum resolution 400, 800, 1600 lines Dynamic range 106 dB A/D converter resolution 24 bit Storage space 4 GB Display 128 x 160 pixels Interfaces Micro USB interface Power supply battery 3.7 V, 1000 mAh battery Battery life ca. 8 hours Power supply for power pack 5 V DC, 1 A Operating conditions 0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing Storage conditions -20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing Dimensions 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3" Weight 150 g / 5.3 oz Vibration sensor specifications Sensitivity 100 mV/g Cable length ca. 1.5 m / 4.9 ft Connection 2 pin MIL-DTL-5015 Case material 316L stainless steel Dimensions Ø25 x 53 mm / Ø0.98 x 2.08" Weight 86 g / 3.0 oz Magnetic holder specifications Diameter 30 mm / 1.18" Magnetic force 20 kg / 44 lbs Connection thread 1/4"-28 UNF female Smallest radius 20 mm / 0.78" Infrared and RPM sensor specifications Cable length ca. 1.2 m / 3.9 ft Dimensions Ø16 x 83 mm / Ø0.63 x 3.26" Weight 75 g / 2.6 oz
