PCE-CSM 7 is a portable brightness tester used to measure different spectral parameters. This user-friendly, ergonomically designed color meter automatically performs a white and black calibration when powered on. Suitable for manufacturing quality control as well as product research and development, the color meter offers impressive measuring accuracy and comes manufacturer calibrated. An optional ISO calibration certificate can be acquired for an additional fee. Useful for determining color difference, chromaticity index, color sample database management, and color difference cumulative analysis. Integrated camera and illumination locating helpful for small samples.
Manufacturers depend on the quality of their products, so to achieve and observe the optical requirements, our portable color meter features the best reliability. When high quantities of goods are produced, all products should have the same look; therefore, the portable color meter facilitates this job and protects the manufacturer against any expensive failures. It does not matter what product it is, because our portable color meter encapsulates a big color gamut for required measurements. The measurements can be analyzed with our provided software.

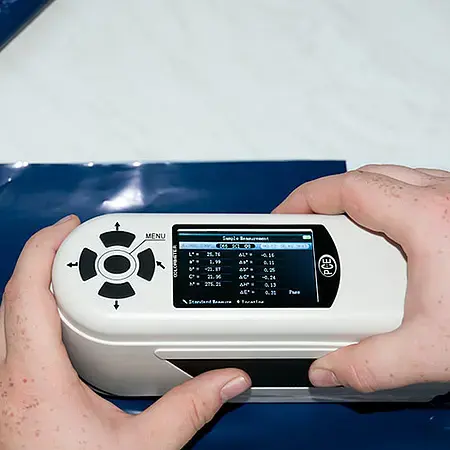

Brightness Tester PCE-CSM 7
- Rechargeable Lithium-Ion battery
- Automatic white and black calibration
- Steady performance
- Degree of whiteness
- Measurement of different colors
- Application at many surfaces
- Easy measuring steps
- Yellowness and Whiteness color fastness
- CIE 1976 and 1994 Delta options
- 3 light source options
- 8 mm extended aperture option for concave surfaces
- Camera/illumination locating for small samples
Illuminating/Viewing Geometry 8/d Measuring Aperture Ø8 mm / Ø4 mm Detector Silicon photoelectric diode Color Space CIEL*a*b*C*h
CIEL a* b*
CIEXYZ
CIERGB
CIEL u* v*
CIEL*C*h°
Yellowness & Whiteness Color FastnessColor Difference Formula ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter Light source D65, D50, A Light source device LED light excitation Errors between each equipment <=0.40 ΔE*ab Storage 100 pcs. standards, 20,000 pcs. samples Repeatability Standard deviation within ΔE*ab 0.06
Average of 30 measurements of standard white plateWeight 500 g / 17.6 oz Dimension 205 x 70 x 100 mm / 8 x 2.7 x 3.9 in Power source Rechargeable Lithium-Ion battery 3.7 V Charging Time 2 hours Measuring times before recharging more than 3000 times Lamp Life 5 years or more than 1.6 million measurements Operating Temperature / Humidity Range -10 ... +40 °C / 14 ... 104 °F; 0 ... 85% relative humidity, non condensation Data Interface USB
