A Color Viewing Box is used wherever products need to have the same colour characteristics during production. Thus, a Color Viewing Box contributes to quality control. The Color Viewing Box is a simulation tool which is capable of representing certain situations in order to analyse the colour characteristics of individual samples. The Color Viewing Box PCE-CIC 10-LED supports six possible illuminants. These illuminants are included as standard: "A/F", "D50", "TL84/F11", "UV", "CWF" and "TL83/U30".
Metamerism can thus be avoided by using a Color Viewing Box. As a support during the measurement, the Color Viewing Box has an hour counter which makes it easier for the user to adhere to the recommended operating time of the lamps. The illuminant is selected by the user independently by the touch of a key. The keys are located on the front side of the Color Viewing Box. If desired, several illuminants can also be enabled simultaneously in the Color Viewing Box. This is done by pressing the respective keys simultaneously.

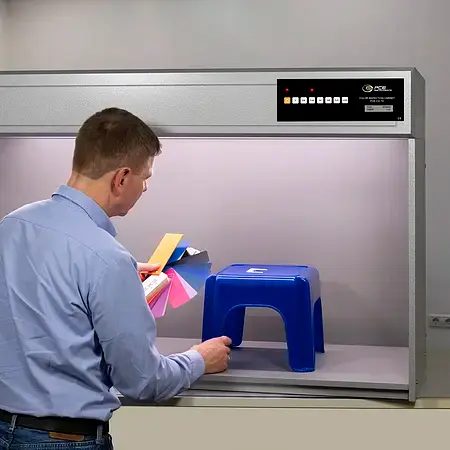

Color Viewing Box PCE-CIC 10-LED
- colour assessment with different illuminants
- with hour counter
- short warm-up time
- meets ASTM D1729, ISO3664, DIN, ANSI, BSI
- low-maintenance housing
- large lighting area of the objects
General technical data Standard(s) ASTM D1729, ISO 3664, DIN, ANSI, BSI Light source Domestic light: A / F
Artificial daylight: D50
Store light: TL84 / F11
Ultraviolet: UV
Office / commercial / warehouse light: CWF
Commercial / office light in the USA: TL83 / U30Menu language English (GB), English Protection class (device) IP20 Power supply 230 V AC / 50 Hz Connector type Cold-device plug Weight 65 kg Operating conditions 10 ... 50 °C , 10 ... 90 % RH Storage conditions 10 ... 50 °C , 10 ... 90 % RH Dimensions ( L x W x H ) 1310 x 600 x 800 mm
