Our compact digital multimeter is perfect for measuring the insulation resistance of electrical devices and household appliances. With its ability to measure insulation resistance, AC voltage, low resistance, PI (polarization index) and DAR (dielectric absorption), it is a versatile and reliable tool for many application scenarios. With test voltages of 100 V, 250 V, 500 V and 1000 V, insulation resistances of up to 5.5 GΩ can be measured, enabling accurate analysis and evaluation of insulation quality. The digital multimeter not only offers the possibility to measure direct voltage (DC) in the measuring range from 30 V to 600 V and alternating voltage (AC), but also records the resistance in the range from 0 Ω to 999 Ω with high accuracy to ensure a good diagnosis of electrical systems.
The automatic AC and DC detection as well as the automatic discharge guarantee user-friendly operation and maximum safety during the measuring process. In addition, the digital multimeter has a high-voltage alarm and an over-limit alarm to inform the operator of possible risks. The digital multimeter is powered by 6 x AA batteries and also has the option of an external power supply of 9V DC.

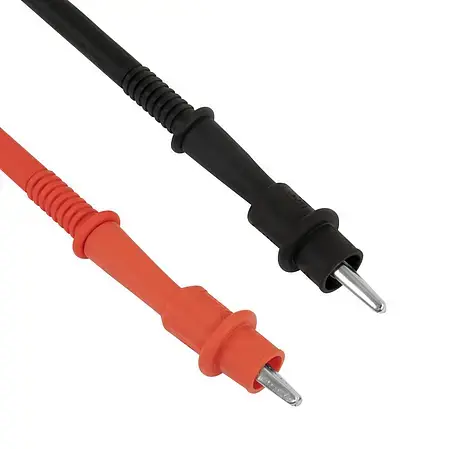

The device complies with the standards: CAT III 600 V, CAT I 2500 V and IEC 6010-1, and is supplied with approx. 80 cm long test leads in an equipment bag.
Digital Multimeter PCE-IT 200
- Measurement functions: HOLD, PI (polarization index), DAR (absorption ratio)
- Automatic detection of AC and DC
- Automatic discharge
- High voltage indicator
- Alarm when limit value is exceeded
- Overload: AC 720 V / 10 seconds
- Powered by 6 x 1.5V AA batteries
- External 9V DC power supply possible
Direct voltage DC Measuring range 30 V ... 600 V Resolution 1 V Accuracy ±2% v.Mw. ±3 digits AC voltage AC Measuring range 30 V ... 600 V Resolution 1V Accuracy ±2% v.Mw. ±3 digits Overload AC 720 V / 10 seconds Insulation resistance Test voltage DC 100 V Measuring range 0 GΩ ... 1.5 GΩ Resolution 0.01 GΩ Accuracy ±5% v.Mw. ±3 digits (over 100 kΩ) Insulation resistance Test voltage DC 250 V Measuring range 0 GΩ ... 5.5 GΩ Resolution 0.01 GΩ Accuracy ±5% v.Mw. ±3 digits (over100 kΩ) Insulation resistance Test voltage DC 500 V Measuring range 0 GΩ ... 5.5 GΩ Resolution 0.01 GΩ Accuracy ±5% v.Mw. ±3 digits (over 100 kΩ) Insulation resistance Test voltage DC 1000 V Measuring range 0 GΩ ... 5.5 GΩ Resolution 0.01 GΩ Accuracy ±5% v.Mw. ±3 digits (over 100 kΩ) Resistance Measuring range 0 Ω ... 999 Ω Resolution 0.1 Ω Accuracy ±(2% v.Mw. +3 digits) General technical data Measurement functions HOLD, PI, DAR Display type LC color display Measurement rate 2 Hz Standard(s) IEC 6010-1 Operating time 12 h Safety standard CAT III 600 V, CAT I 2500 V Alarm optical, acoustic Menu language English Protection class (device) IP20 Power supply DC9V Weight 689 g Dimensions (L x W x H) 110 x 176 x 77 mm Operating conditions 0 ... 40 °C , 0 ... 85 % r.H Storage conditions -20 ... 60 °C , 0 ... 90 % r.H Accumulator/battery 6x 1.5 V AA battery , alkaline-manganese Capacity 3000 mAh
