The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with a radio display and two shackles in a transport case.
Interesting functions of the tension force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

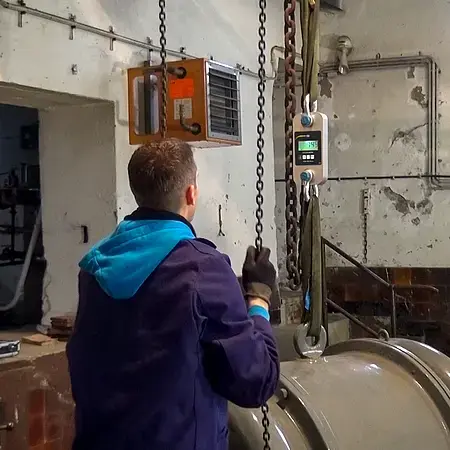

Force Gage PCE-DDM 3
- Measuring range up to 3,000 kg
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.
Measuring range 3000 kg / 30 kN / 6614 lbs Resolution 1 kg / 10 N / 2.2 lbs Min. range 10 kg / 22 lbs Weight (with shackle) 2 kg / 4.4 lbs
(5 kg / 11 lbs)
Accuracy ±0.1% of measurement range Tare range Max. 20% of measurement range Display LCD with 22 mm / 0.9 in digit height Units of measurement kg / t / lb / N / kN Sampling rate 2.5 Hz Operating temperature -10°C ... 40°C / 14°F ... 104°F Power supply 3 x 1.5V AA batteries Operating time Approx. 50 hours
