The gas leak detector is used in various areas of industry. For example, the leak detector is used on compressed air, gas, steam and vacuum systems, as well as on refrigeration systems and door seals. The working frequency of the leak detector is 40 kHz (± 2 kHz). The soundproof headphones on the leak detector ensure that it can also be used in extremely noisy environments. The leak detector is used wherever gases can escape from leaks in piping systems. The noises caused by the outflow are often in the ultrasonic range and are therefore imperceptible to the human ear.
The gas leak detector picks up this ultrasound via the sonic funnel and converts the inaudible ultrasound into audible frequencies. The laser pointer built into the leak detector enables the leak to be precisely targeted. The leak detector's horn has been designed to be able to pick up sound waves and focus them in such a way that it acts like a directional microphone and suppresses other noise.

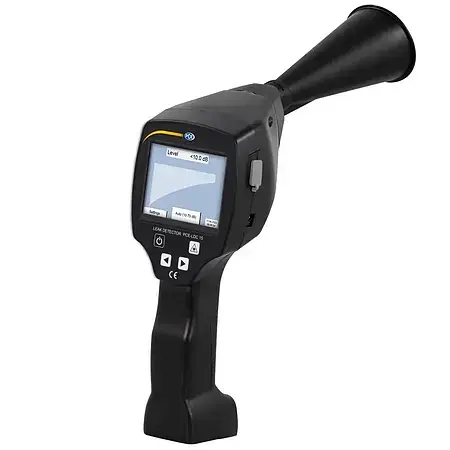

Gas Leak Detector PCE-LDC 15
- Working frequency 40 kHz (± 2 kHz)
- Operating time >10 hours
- Various attachments
- Transport case for safe transport
- Easy to use thanks to the touchscreen
- Soundproof headphones
Working frequency 40 kHz (± 2 kHz) Laser wavelength 630 ... 660 nm, output power <1mW (laser class 2) Color display 3.5“ touch panel TFT Connections 3.5mm jack plug for headphones, power supply socket for connecting an external charger USB port for software updates Power supply internal 7.4 V lithium-ion battery Charging time max. 4 hours Operating time >10 h (continuous operation) Degree of protection IP20 Operating conditions -5 ... +50 °C / 23 ... 122 °F, <95% RH, non-condensing Storage conditions -20 ... 60 °C / -4 ... 140 °F, <95% RH, non-condensing Altitude 4000 m above sea level Permitted Pollution degree 2 Dimensions 263 x 96 x 280 mm / 10.3 x 3.7 x 11" (with preamplifier and horn) Weight 0.55 kg / 1.2 lb with preamplifier and horn, complete set in case approx. 3.0 kg / 6.6 lb
