The precision moisture analyzer enables accurate and simple moisture determination in a wide range of materials. The sample is automatically weighed, dried and the weight loss is displayed as moisture content. This measuring principle does not require any time-consuming creation of characteristic curves and is immediately ready for use shortly after installation.
For the weighing task, the precision moisture analyzer has an electromagnetic load cell installed which registers the weight loss with a measuring resolution of 0.1 mg = 0.0001 g. For drying the sample, a moisture analyzer is installed in the sample chamber. To dry the sample, a 400 watt halogen round lamp is installed in the lid to ensure uniform heat distribution.
To avoid burning the sample, the user of the moisture analyzer can access the internal product database or set the drying temperature between 35 °C and 160 °C in 1 °C steps, product specific. The product database has preset drying parameters that can be easily expanded and changed by the user.

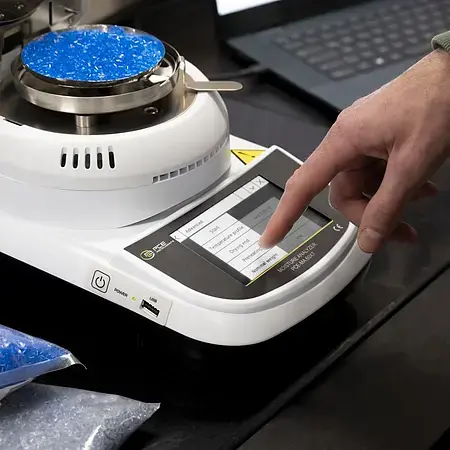

Moisture Analyzing Balance PCE-MA 60XT
- Sample weight max. 60 g
- Readability 0.1 mg = 0.0001 g = 0.001 % humidity
- Round 400 watt IR halogen lamp
- Drying temperature adjustable from 35 °C up to 160 °C in 1 °C steps
- Sample dish size Ø100 mm / h= 8 mm
- 5" color touch display
- Memory for up to 300 performed moisture determinations
- Data transfer as TXT file to USB stick directly possible
- User database / product database / measurement database
Measuring principle Gravimetric moisture determination Weighing range (Max) 60 g Readability 0.1 mg / 0.0001 g / 0.001 % humidity Weighing electronics Electromagic force compensation cell Repeatability Weight measurement ± 0.0003g Moisture measurement ± 0.18 % (referred to 2 g sample) Sample weight Min. 2 g / Max. 60 g Sample area approx. Ø 100 mm / height max. 25 mm Determination options Moisture content % / Dry content % / ATRO % / Weight End of measurement no weight loss / time lapse / manual Drying temperature range +35 ... +160 °C in 1°C steps Heating profiles Standard / Fast / Mild / Steps Heating element 400 Watt IR round heater Databases 300 measurement protocols performed Drying database for over 30 products User database for 10 users Interface RS-232 / USB-A for USB stick Display 5" touch color display Menu language German / English / French / Italian / Spanish Power supply 220 V / 50 Hz PCE-MA 60XT-US 110 V / 50 Hz Dimensions 345 x 215 x 235 mm Weight 6,1 kg Recommended calibration weight 50 g
