The Thickness Gauge has a measuring range of 0 ... 2000 µm. The Thickness Gauge can measure the coating thickness on ferrous (Fe) and non-ferrous (NFe) metals. For a better analysis of the measurements, the coating thickness gauge has a measuring function based on the SSPC standards. With this function, the corrosion protection of a coating can be checked with the Thickness Gauge.The Group function stores the measured values directly on the Thickness Gauge. A memory of 50 groups with 50 measurements each is available on the Thickness Gauge. In each group, statistics are created for all measured values from the Thickness Gauge. All measurement data and statistics can be recalled after a measurement run on the Thickness Gauge.For further analysis of the measured values, the Thickness Gauge can be connected to a PC. The Thickness Gauge has a micro-USB interface for this purpose. The software can be used to transfer the measurement data from the Thickness Gauge to a PC. In addition, it is possible to carry out live measurements with the Thickness Gauge using the software. For further processing of the measured values from the Thickness Gauge, they can be exported in CSV and XLS format via the software. In addition to the coating thickness measurement, the Thickness Gauge can measure the temperature and humidity of the environment. Thus, the Thickness Gauge can be used to find out whether the climatic conditions are right to carry out further processing on the coating. With the V-groove, the coating thickness of, for example, pipes can also be determined with the Thickness Gauge. Optionally, the Thickness Gauge can be equipped with an ISO calibration certificate.

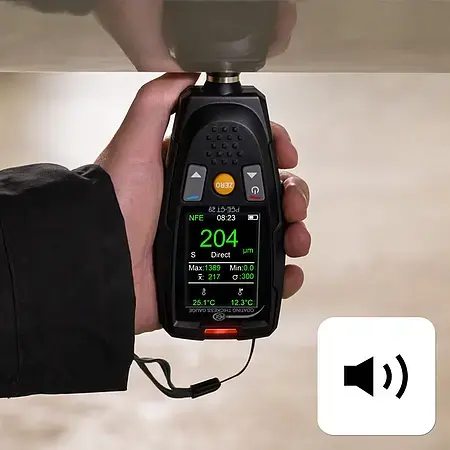

Thickness Gauge PCE-CT 29
- Data memory for later evaluations
- Rechargeable batteries
- For ferrous and non-ferrous metals
- Alarm when limit value exceeded
- Statistics function for analyzing a test object
- Alignment sensor for turning the display
- Measuring range 0 ... 1500 μm
- Graphic representation of the measured values
Measurement on ferrous metal (Fe) Measuring range 0 ... 2000 µm Resolution 0.1 µm @ 0.0 ... 99.9 µm 1 µm @ 100 ... 2000 µm Accuracy ±(2 % ±2 µm of Mw.) Repeatability ±(1 % ±1 µm of Mw.) Smallest radius of curvature 1.5 mm Smallest measuring area Ø7 mm Smallest layer thickness 0.5 mm Measurement on non-ferrous metal (NFe) Measuring range 0 ... 2000 µm Resolution 0.1 µm @ 0.0 ... 99.9 µm 1 µm @ 100 ... 2000 µm Accuracy ±(2 % ±2 µm of Mw.) Repeatability ±(1 % ±1 µm of Mw.) Smallest radius of curvature 3 mm Smallest measuring area Ø5 mm Smallest layer thickness 0.3 mm Temperature Measuring range 0 ... 50 °C / 32 ... 122 °F Resolution 0.1 °C / °F Accuracy ±1.2 °C / ±2.2°F Humidity Measuring range 0 ... 100 % r. h. Resolution 0.1 % r. h. Accuracy ±3.2 % r. h. @ 20.0 ... 70.0 % r. h. ±4.0 % r. h. @ 0.0 ... 19.9 % r. h. ±4.0 % r. h. @ 70.1 ... 100.0 % r. h. Further specifications Base material for measurements Ferrous (Fe) and non-ferrous (NFe) metals Display 2.4 " LC display Automatic display orientation 0, 90, 180 and 270 °, can be switched off (only measuring window) Statistic functions average, highest, lowest and SDEV measured value Measuring modes direct, groups, SSPC Units µm, mm, mils, inch Power supply 2 x 1.5 V AA batteries Interface Micro-USB (for data transfer only) Alarm signal tone and / or LED signal light in case of Exceeding of the adjustable upper and lower alarm limit Switch-off Off, 30 seconds, 1 minute, 5 minutes Menu languages English, German, French, Spanish, Italian, Portuguese, Chinese, Japanese Operating conditions 0 ... 50 °C, 20 ... 90 % r.h., non-condensing Storage conditions -10 ... +60 °C, 20 ... 90 % r.h., non-condensing Dimensions 35 x 64 x 137 mm Weight 175 g
