Thickness Gauge TG 300

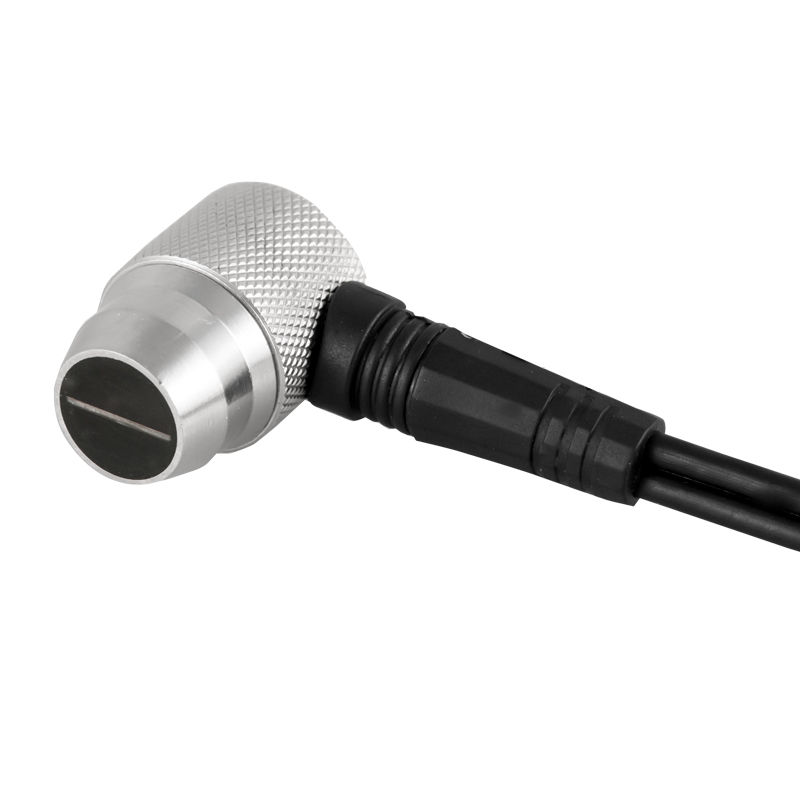

The TG 300 is a wall thickness gauge with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the TG 300. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the wall thickness gauge TG 300 and thus adapted to a wide variety of materials.

The measured values ​​are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.

- Large measuring range
- Various sensors available
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth

Thickness Gauge TG 300

  • Measuring range PE: pulse-echo mode 0.65 ... 600 mm (steel)
      EE: echo-echo mode 2.50 ... 60 mm
    Accuracy ± 0.04 mm H [mm] (<10 mm); ± 0.4% H [mm] (> 10 mm)
      H refers to the material thickness of the workpiece
    Resolution 0.1 mm / 0.01 mm / 0.001 mm (adjustable)

    Measurable materials Metals
      Plastics
      Ceramics
      Epoxy resin
      Glass
      And all homogeneous materials

    Working modes Pulse echo mode (fault and blower detection)
      Echo-Echo mode (hiding layer thicknesses, eg paints)

    Calibration Sound velocity calibration
      Zeroing
      Two-point calibration

    View mode Normal mode, Scan mode, Difference mode
    Units mm / inch
    Data transfer Print via Bluetooth / USB 2.0
    Storage Non-volatile memory with 100 data groups with 100 data sets each
    Operating time Continuous operation 100 h
      Automatic stand-by mode (adjustable)
      Automatic switch-off mode (adjustable)

    Power supply 4 x AA battery 1.5V
    Display 320 x 240 pixels TFT LCD color display with brightness adjustment
    Operating conditions 0 ... 50°C / 32 ... 122°F, ≤ 80% RH not condensing
    Storage conditions -20 ... 70°C / -4 ... 158°F, ≤ 80% rh non-condensing
    Dimensions 185 x 97 x 40 mm / 7.3 x 3.8 x 1.6 in
    Weight 375 g / < 1 lb
  • NO2
    Frequency 2.5 MHz
    Diameter 14 mm
    Measuring range 3 ... 40 mm (steel)
      3 ... 300 mm (steel)
    Minimum diameter of pipes  Not suitable for curved materials
    Description For damping / scattering materials (plastics, cast iron)

    NO5
    Frequency 5 MHz
    Diameter 10 mm
    Measuring range 1 ... 600 mm (steel)
    Minimum diameter of pipes  20 x 3 mm
    Description                                   Normal measurement

    NO5 / 90°
    Frequency 5 MHz
    Diameter 10
    Measuring range 1 ... 600 mm (steel)
    Minimum diameter of pipes 20 x 3 mm
    Description Normal measurement

    NO7
    Frequency 7 MHz
    Diameter 6 mm
    Measuring range 0.65 ... 200 mm (steel)
    Minimum diameter of pipes 15 x 2 mm
    Description Or thin-walled or heavily curved pipes

    HT5
    Frequency 5 MHz
    Diameter 12 mm
    Measuring range 1 ... 600 mm (steel)
    Minimum diameter of pipes 30 mm
    Description For high temperatures (max 300°C / 572°F)

    P5EE
    Frequency 5 MHz
    Diameter 10 mm
    Measuring range PE: 2 ... 600 mm, EE: 2.5 ... 100 mm
    Minimum diameter of pipes 20 x 3 mm
    Description Normal measurement and EE test
