The Vibration Analyzer / Vibration Analyser enables fast and precise measurement of acceleration, vibration displacement and vibration velocity in three directions (X, Y, Z) or for a single axis. It is used in accordance with ISO 2954 for the detection of unbalance, misalignment and mechanical faults in rotating machinery and is ideal for quality control, commissioning and predictive maintenance on site.
With a frequency range of 10 Hz to 10 kHz, it detects a wide range of vibrations, making it versatile for industrial applications. The Vibration Analyzer / Vibration Analyser weighs just 163 g / 0.4 lbs and is easy to read even in difficult conditions thanks to the backlit 2-inch LCD display. In addition, the Vibration Analyzer / Vibration Analyser switches off automatically after 30 minutes of inactivity to save energy.
The Vibration Analyzer / Vibration Analyser has a 3-axis piezoelectric accelerometer with three mounting options: a magnetic sensor and two measuring tips (one conical and one spherical) that can be attached to the sensor. These accessories enable precise and versatile vibration measurements on various machines and surfaces. This makes the device a handy and powerful tool for industrial vibration measurements. It supports various units such as mm/s, inch/s, m/s², g, ft/s², mm and mil and has a measurement function that displays the maximum measured values.

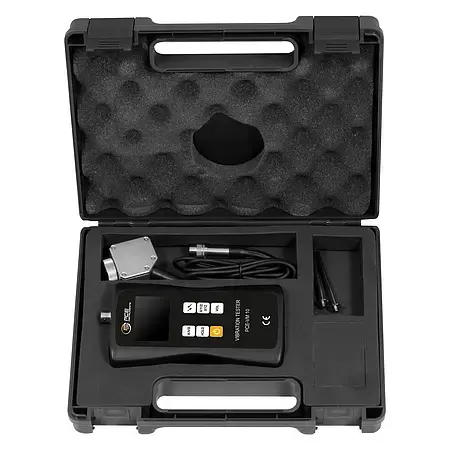

Vibration Analyzer / Vibration Analyser PCE-VM 10
- Measurement of acceleration, velocity and displacement
- Frequency range: 10 Hz ... 10000 Hz
- 2 inch LCD display
- Max. Measuring function
- Units: mm/s, inch/s, m/s², g, ft/s², mm, mil
Acceleration Measurement range up to 0,1 ... 400 m/s² Resolution 0,1 m/s² Accuracy 5 % v.Mw. +2 Digits Frequency range 10 Hz ... 10 kHz Acceleration Measurement range up to 0,3 ... 1312 ft/s² Resolution 0,1 ft/s² Accuracy 5 % v.Mw. +2 Digits Acceleration Measurement range up to 0 ... 40 g Resolution 0,1 g Accuracy 5 % v.Mw. +2 Digits Speed Measurement range up to 0,01 ... 400 mm/s Resolution 0.01 mm/s Accuracy 5 % v.Mw. +2 Digits Frequency range 10 Hz ... 1 kHz Speed Measurement range up to 0,004 ... 16 inch/s Resolution 0.001 inch/s Accuracy 5 % v.Mw. +2 Digits Displacement Measurement range up to 0,001 ... 4 mm Resolution 0,001 mm Accuracy 5 % v.Mw. +2 Digits Frequency range 10 Hz ... 1 kHz Displacement Measurement range up to 0,04 ... 160 mil Resolution 0,01 mil Accuracy 5 % v.Mw. +2 Digits Sensor Frequency 10 ... 10000 Hz Dimension L: 3.5 cm x W: 3.5 cm x H: 2 cm Cable length 130 cm General technical data Outputs AC 0 ... 2 V Measuring functions MAX Display type LCD with backlight Display size 2 Inch Interface RS232C Standard(s) ISO 2954, GB 13823.3 Automatic power-off 30 min Automatic power-off can be deactivated Yes Menu language English, English (GB) Protection class (device) IP20 (Rechargeable) battery 4 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions 0 ... 50 °C , 0 ... 90 % RH Storage conditions 0 ... 50 °C , 0 ... 90 % RH Dimensions ( L x W x H ) 150 x 78 x 30 mm Weight 163 g
