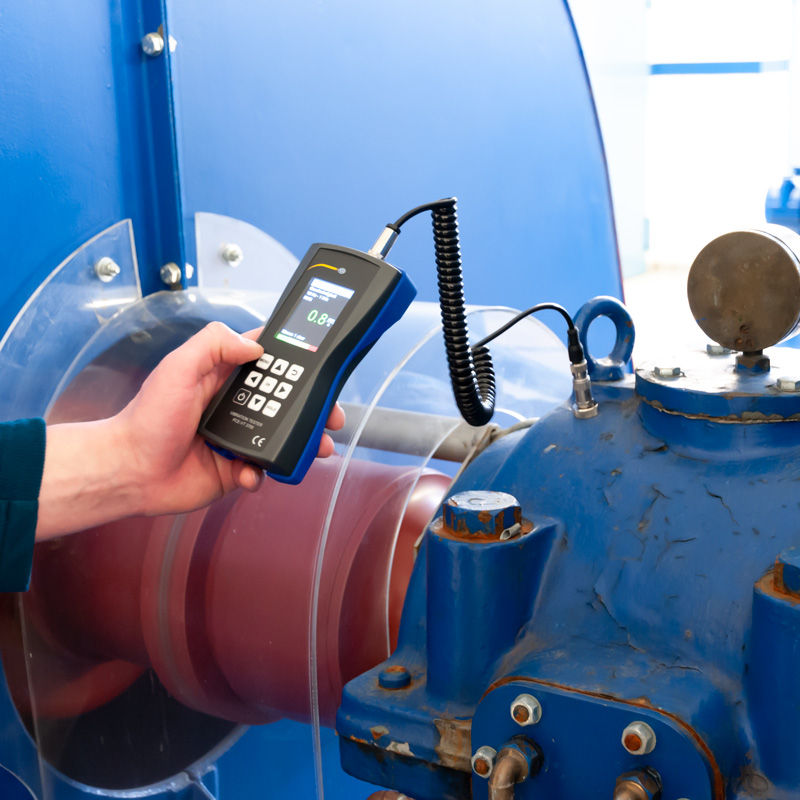

The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.
The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.
- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
Vibration Meter VT 3700
Measuring range Acceleration 0.0 - 399.9 m/s² / 0.0 - 15744 in/s² Resolution 0.1 m/s² / 3.94 in/s² Accuracy @ 160 Hz ±2 % Frequency range 1 kHz - 10 kHz 10 Hz - 10 kHz Measuring range Velocity 0.00 - 399.99 mm/s / 0.00 - 15.74 in/s Resolution 0.01 mm/s / 0.0039 in/s Accuracy @ 160 Hz ±2 % Frequency range 10 Hz - 1 kHz Measuring range Displacement 0.000 - 3.999 mm / 0.000 - 0.154 in Resolution 1 µm / 39.4 µin Accuracy @ 160 Hz ±2 % Frequency range 10 Hz - 200 Hz Measurement parameters RMS, Peak, Peak-Peak Crest factor Units switchable metric / imperial Display 2.4" LC display Menu languages English, German, French Spanish, Italian, Dutch Portuguese, Turkish, Polish Russian, Chinese, Japanese Power supply 3 x 1.5 V AA batteries Operating and storage conditions -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. Dimensions 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5" Weight 170 g / 6 oz Resonance frequency 24 kHz Transverse sensitivity ≤ 5% Destruction limit 5000 g (peak) Operating and storage temperature -55 ... +150 °C / -67 ... 302 °F Housing material stainless steel Mounting thread ¼ - 28“ Dimensions Ø 17 x 46 mm / 0.67 x 1.8" Weight (without cable) 52 g / 1.8 oz
